An Insoma water timer with three dead outlets failed after four months of use. The culprit was a single leaking electrolytic capacitor on a potted control board. Electronupdate documented the full teardown and repair on YouTube.

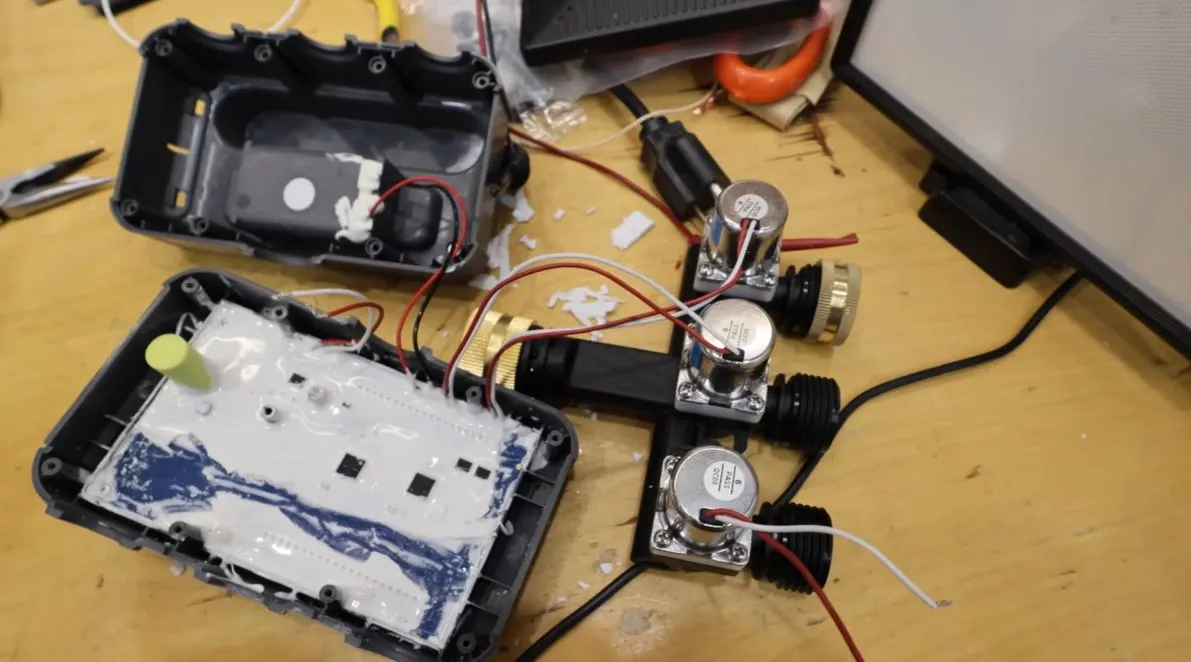

The diagnostic path is what makes this worth reading. The solenoids, rated for 6VDC with a 20ms actuation time, tested fine on a bench battery. An oscilloscope trace showed the board was only outputting around 2V, pointing the fault squarely at the controller. That meant scraping through epoxy potting compound to reach the PCB, where H-bridge drivers, control ICs, and a power boost circuit were eventually exposed.
A capacitor that failed in under four months is the real story here. The teardown shows exactly how to trace a symptom, voltage starvation, back through a sealed board to a single passive component. If your cheap irrigation timer has gone silent, the repair logic documented here applies broadly.
